1.概述 General introduction

    Y系列6KV、10KV高壓三相異步電動機是采用國内最新高壓電機設計生産的鼠籠型鑄造 轉子電機。其防護等級為IP23（GB4942.1），冷卻方式為IC01（見GB/T1993)。

      本系列電機具有高效、節能、噪聲低、振動小、重量輕、性能可靠、安裝維修方便等特點，并具有良好的絕緣性能和防潮能力。能直接用于6KV、10kv級電網，無需中間變壓設備。

      适用于驅動聯軸器傳動的各種機械設備，如通風機、壓縮機、水泵、破碎機、切削機床及其它設備，并可供煤礦機械工業、發電廠及各種工礦企業作原動機之用。

    本系列電動機的結構及安裝型式為IMB3，定額是以連續工作制（S1）為基準的連續定額。額定頻率為501—1Z，額定電壓6KV、10KV。如用戶有特殊要求，可在訂貨時共同商定。

     Y-series(6KV/10kv)squirrel-cage three phase asynchronous motor,is building on the advanced technology in the nation.The protection degree of the motor is of IP23(according toGb4942.1),and the cooling method is IC01(according to GB/T1993).

    The motors has a lot of advantages such as height efficiency ,enerty-saving,low noise and vibration ,light weight and reilable performance .THey are easy for installation andmaintenance.The motor has high insulation class and moistureproof capacity.

     The motor is used to drive various mechanical equipments such as blowers ,pumps,crushers,storkremoing machines and other  equipments,It can serve as the prime movers in coalmines,mechanical industries,powerplants and various industrial enterprises.

    The structure and the mounting type is of IMb3 with the continuous duty(S1).The rated frequency is 50Hz and the rated voltage are 6000v,10000v.Other special requirements should be negotiate with the manufactuer before the order is placed.

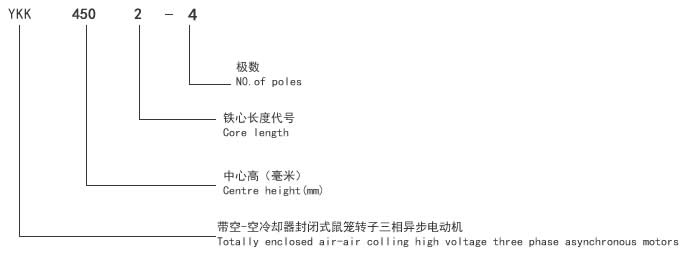

2.型号說明Symbol explanation

3.結構說明 Brief Construction

3.1 電動機為國際流行的箱式結構，機座和端蓋均由鋼闆焊接制成，剛度好，重量輕，電動機頂部采用封閉式空-空冷卻器，拆裝方便，利于電動機的維護和修理。

3.2 定子繞組采用F級絕緣材料和防護材料，定子繞組端部固定采用特殊綁紮工藝，牢固可靠，整個定子采用真空壓力浸漬F機無溶劑（VPI）處理。因此，電動機具有優良可靠的絕緣性能和防潮、抗沖擊能力。

3.3 本系列電動機鼠籠轉子大部分采用鑄鋁轉子，運行可靠；鼠籠銅條轉子采用先進可靠的焊接工藝，并且槽内緊固處理。

3.4 軸承有滾動軸承和滑動軸承兩種型式，依電動機功率大小及轉速而定，其基本防護等級為IP44.如電動機具有較高的防護等級時軸承的防護等級也随之提高。采用滾動軸承的電動機均有不停機加油和排油轉置。

3.5 主接線盒為密封結構，防護等級為IP54.一般裝于左側。出線盒的進線孔可朝上、下、左、右四周轉換。盒内有單獨的接地端子。

3.1 The motor adopts compacted box structure,welding-jointed steel plate forits frame,light weight ,rigid in construction,there is closed air to air coolers on the stator frame convenient for installation and maintenance.

3.2 Stator winding adopts F class insulation and its end adopts firm binding.The whole stator adopts solvent-free varnish Vacuum pressure impregnation(VPI) to ensure the stator has excellent electric property and humidity resistance.

3.3 Rotor is made of cast aluminium or copper bar.Aluminium rotor is made of pure aluminium,copper barwedging copper rotor enhances the entorety of rotor.

3.4 The motor adopts rolling bering or sliding bering ,according to the output power and rotary speed.bearing protection grade normally is IP44.If the motor's protect grade increases,so does the berings'.Rolling bearing adopts iubricating gresse and its grease charger and discharger can be charged or discharged without stopping the motor.

3.5 The junction box is of IP54 protection grade and it is usually mounted on the motor's right side(viewed from shaft extension end.)Lt is also can be mounted on the left side and its outlets have four optional orientations(up,down ,left or right.)Separated grounding unit is available in main junction box,too.

4.使用條件及其性能 Working conditions and performance

4.1 額定電壓6Kv、10kv,額定頻率50HZ。

4.2 絕緣等級F級，防護等級IP44和IP54。

4.3 海拔不超過1000M。

4.4  最高環境空氣溫度不超過40攝氏度；最低環境空氣濕度對應采用滾動滾動軸承的電動機為-15攝氏度，對應采用滑動軸承的電動機為5攝氏度。

4.5 最濕月月平均最高相對濕度為90%，同時該月月平均最低濕度不高于25攝氏度。

4.6工作電壓變化範圍不大于額定電壓+5%。

4.7 電源頻率為50HZ+1%；

4.8 電動機額定為連續工作制S1。

4.9 冷卻方式為IC611。

4.1 THe rated power supply is 6KV、10KV 50HZ.

4.2 The insulation class is F,the protection degreeis IP44 or IP54.

4.3 Height above sea level does not exceeding 1000 meters.

4.4 Height environmental temperature<40℃,lowest environmental temperature:rolling bering>-15℃.silding bering>5℃.

4.5 The ambient air relative humidity does not exceed 95% and the mean monthly minimum temperature of current month does not exceed 25℃

4.6 The deviation between power voltage and rated voltage is less than5%.

4.7 Rated frequency:50Hz+1%.

4.8 Duty type:continuous duty type S1.

 4.9 Cooling method is IC611.
